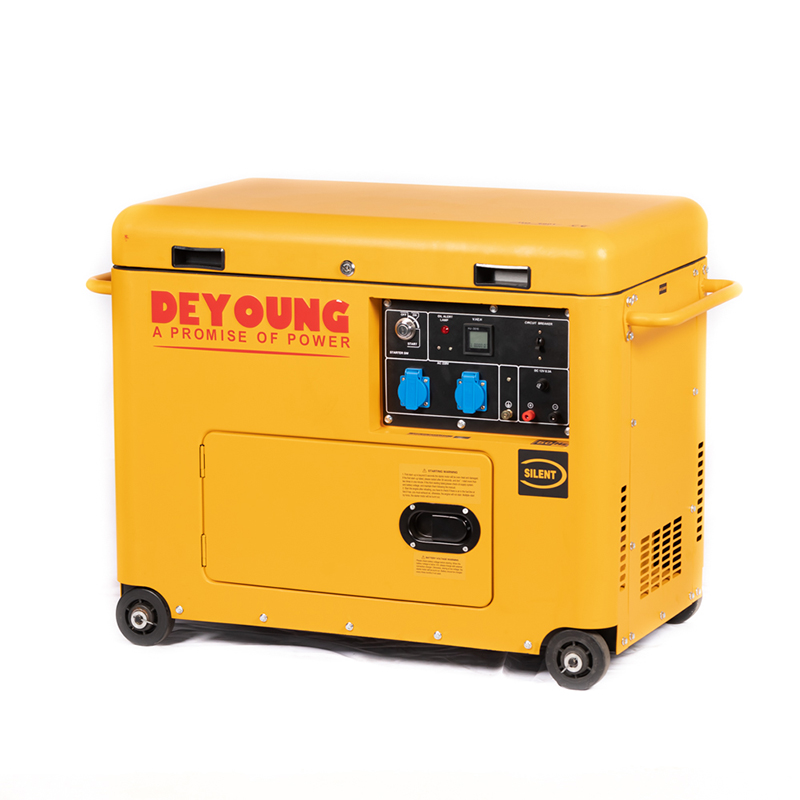

| Silent Diesel Generator (Model B Canopy) | |||
| Model | DY6700LN-B | DY7500LN-B | DY9500LN-B |
| Rated Power (Kw/Kva) | 4.5/5.0 | 5.0/6.0 | 6.0/7.5 |
| Max Power (Kw/Kva) | 5.0/5.5 | 5.5/6.5 | 6.5/8.0 |
| Rated Frequency(Hz) | 50/60 | ||
| Rated Voltage(V) | 110/220V,120/240V,220V,230V,220/380V,230/400V.240/415V | ||
| Starting System | Electric start | ||
| Engine Model | DY186FA(E) | DY188FE | DY192FE |
| Engine Power | 10HP | 12 | 14 |
| Engine Speed | 3000/3600RPM | 3000/3600RPM | 3000/3600RPM |
| Displacement (cc) | 418 | 456 | 498 |
| Fuel Tank Capacity | 16L | ||
| Lub.Oil Capacity | 1.65L | ||
| N.W/G.W | 165/170KGS | 167/172KGS | 175/180KGS |
| Size | 950*550*760MM | ||
