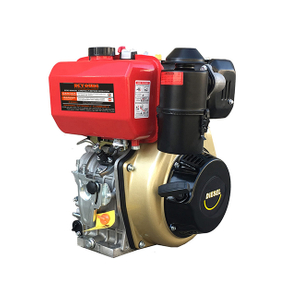

DY186FA

Share to:

Quantity:
DIESEL ENGINE  SPECIFICATION
ModelDY178F(E)DY186FA(E)DY188F(E)DY192F(E)
Engine TypeSingle Cylinder,Vertical,4 Stroke,Air Cooled
Bore*Stroke78X62mm86X72mm88X75mm92X75MM
Displacement 296 cc418 cc456cc498CC
Engine Speed3000/3600RPM
Continuous Output5.0HP/5.5HP8.0HP/9.0HP9.0/10.0HP11HP/12HP
Max.Output5.5HP/6.0HP8.8HP/10.0HP10.0HP/11HP12HP/13HP
Starting SystemManual start Or Electric start
Fuel/Lub.Oil0#In Summer,-10# OR -20# In winter
Lub. Oil CD Grade OR SAE10W-30,SAE15W-40
Electric Starting System 12V-24AH
Fuel Tank Capacity 3.5L5.5L
Lub.Oil Capacity1.1L1.65L1.65L1.7L
Crankshaft keyway, taper, thread, conic
G.W35KGS50KGS50KGS52KGS
DIM L*W*H470*420*520mm510*455*515MM510*455*515MM515*475*565mm
